产品描述

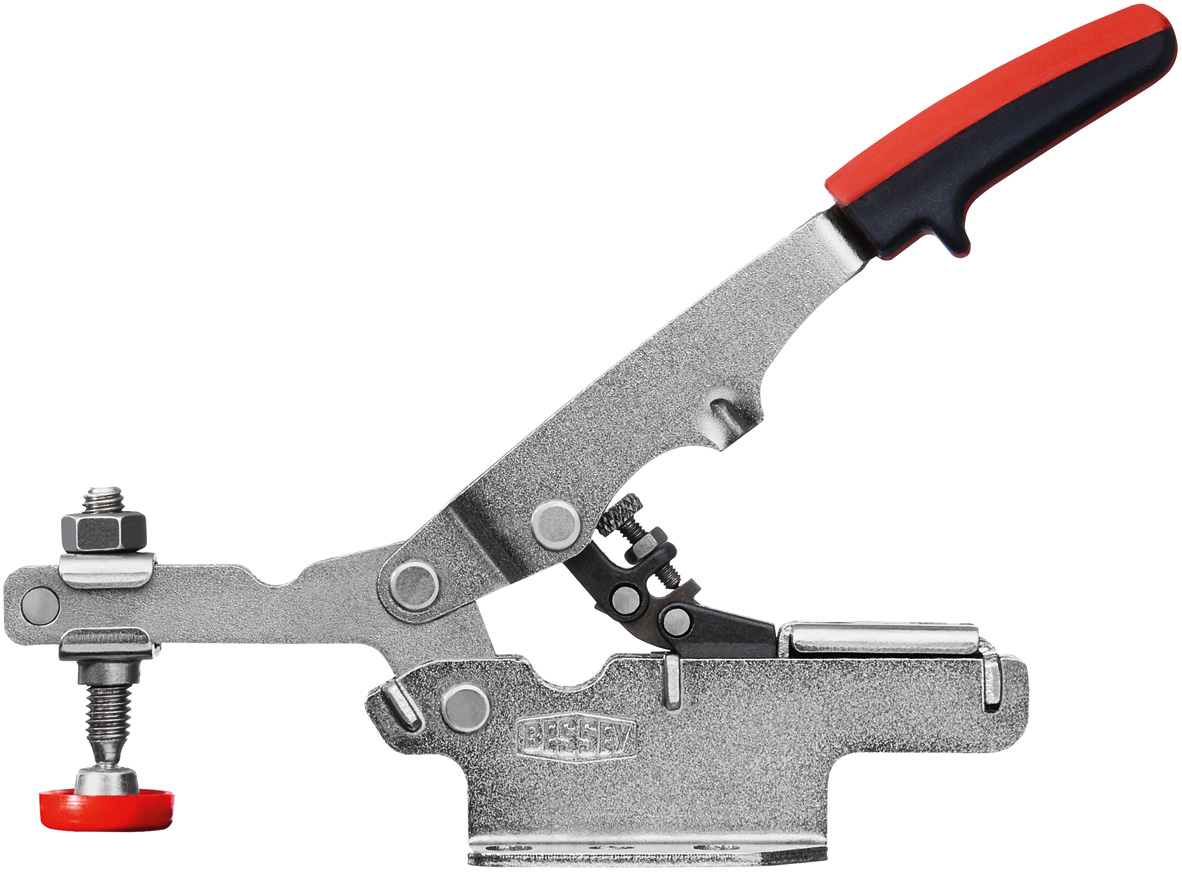

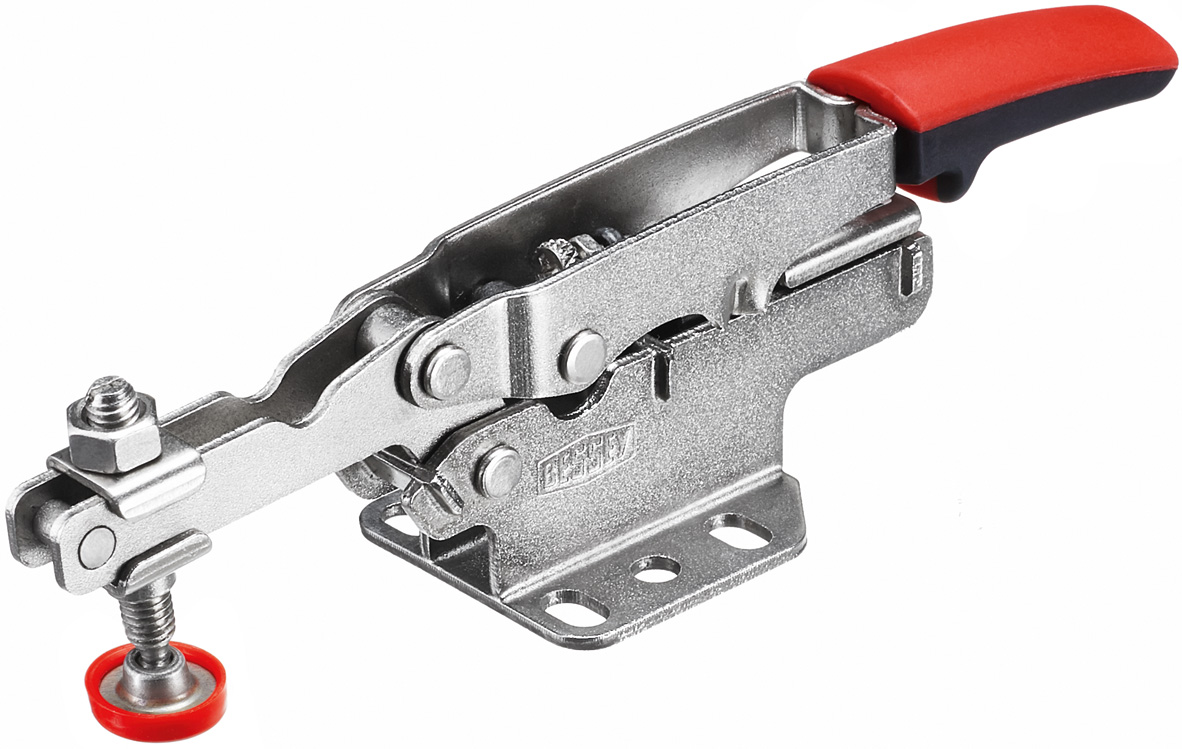

• In the clamped position, the lever is horizontal

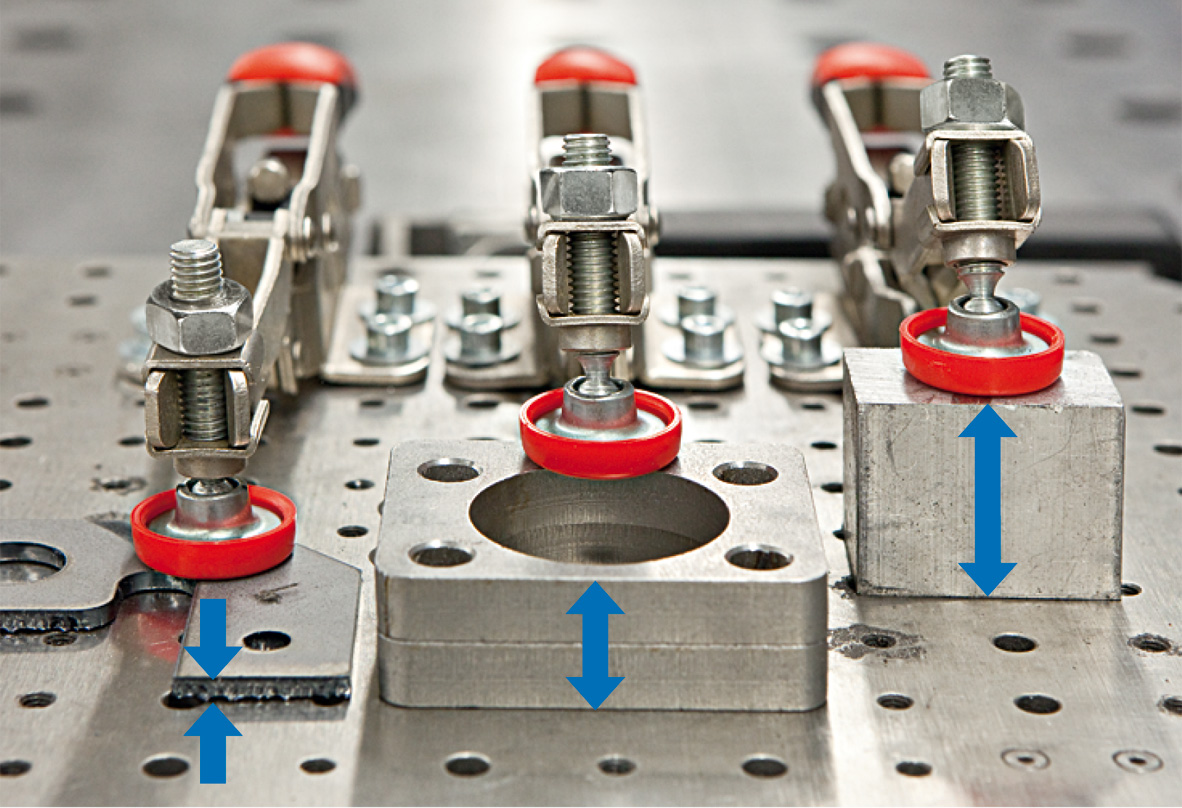

• Automatic and infinitely variable adjustment of the clamping height up to 40 mm (1 ⁹/₁₆ In.) while clamping force remains unchanged – without having to make manual changes to the position of the pressure screws
• Clamping force is variable up to 2,500 N (550 lbs) depending on the adjustment of the set screw in the cantilevered joint
• Sturdy, tempered metal sheets for a long service life

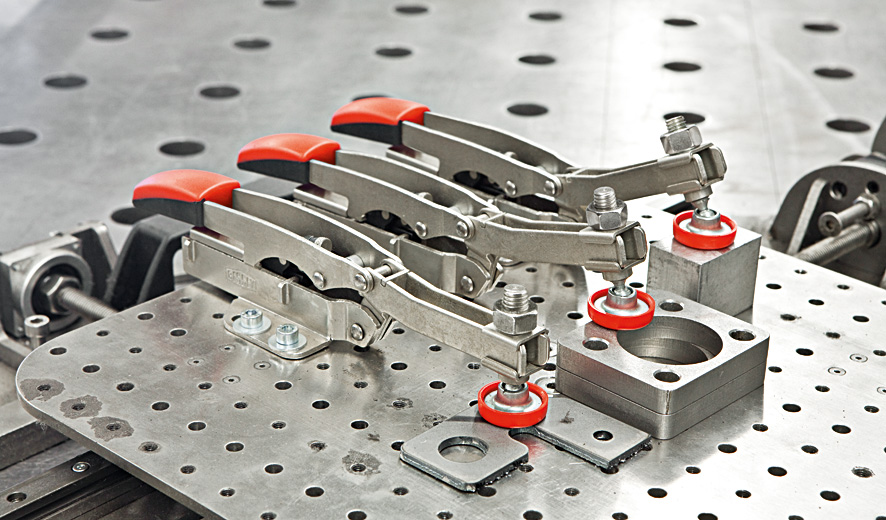

• Hole pattern on the base plate designed to facilitate fast and secure clamping set‐up for metric and imperial
• High‐quality oil resistant two‐component plastic handle (STC‐HH20 with slip protection)

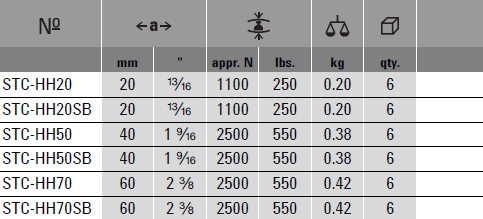

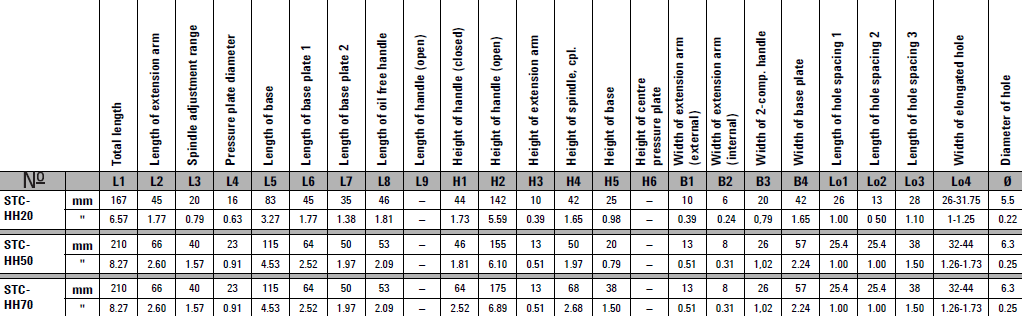

产品列表
